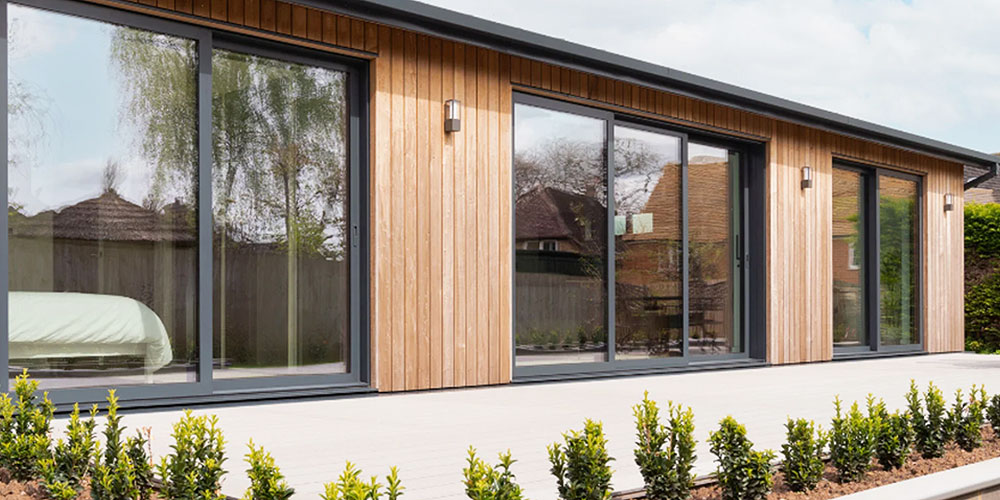

Sheerline Prestige Lift & Slide
Aluminium Patio Doors Bristol
Large-format lift-and-slide aluminium doors designed for wide glass areas, slim framing and smooth operation.
Request a quotation
Big glass. Slim aluminium.

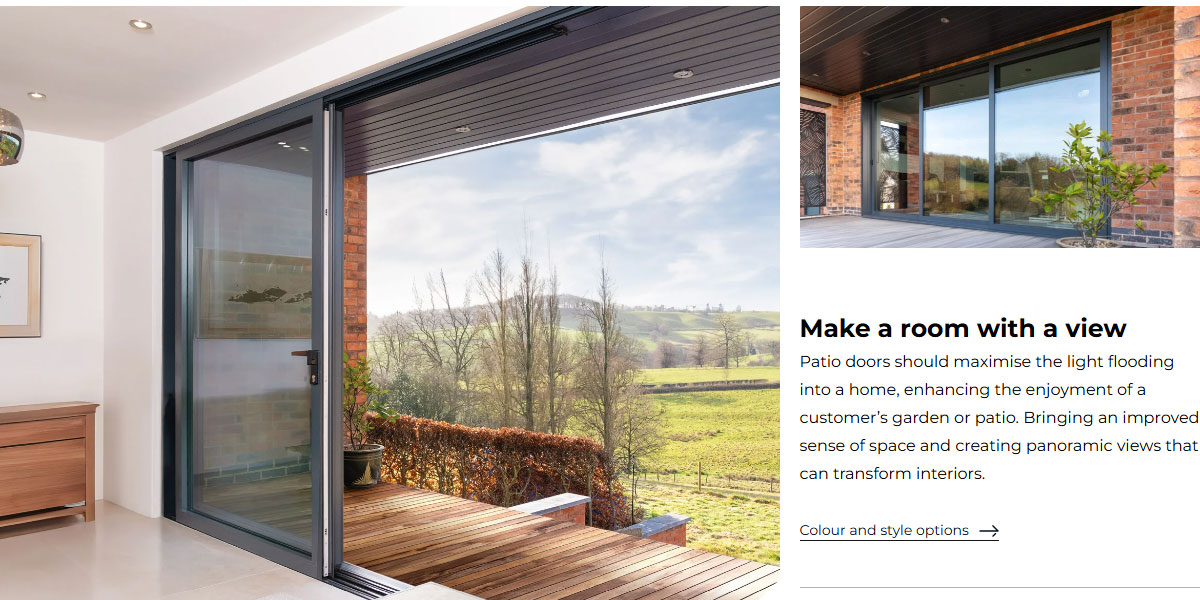

Lift-and-slide doors are designed for openings where large uninterrupted panes of glass are the priority. Turning the handle lifts the sliding sash from its seals so substantial panels can move smoothly along the track before lowering back into the closed position.
Sheerline Prestige Lift & Slide is available with twin or triple tracks and can be configured around two, three or four panes depending on the opening and design.
Published system capability
- Up to 6.5m overall width
- Up to 2.5m high
- Up to 400kg per sash
- Twin and triple track options
- Two, three and four-pane arrangements
- Double and triple glazing options
Maximum sizes and performance depend on the complete specification and must be confirmed for each project.
Refined sightlines
Designed to keep the view as open as possible
The Prestige Lift & Slide system offers frame-and-sash sightlines around 106mm, with interlock options as slim as 52mm depending on configuration. The result is a large glazed opening without visually heavy framing.
Thermal performance
Prestige Lift & Slide uses Sheerline Thermlock® technology and is available with high-performance double or triple glazing. Published U-values vary by pane arrangement, threshold and glazing specification, so we confirm the relevant value for your proposed door rather than applying one figure to every installation.
Thermal qualities →Threshold choices and installation
Threshold, drainage and floor details need to be considered at survey stage, particularly where a low transition between inside and outside is wanted. For new extensions, discussing finished floor levels early can help achieve the cleanest result.
Talk to us about your opening →Manufactured to your project
Send us your approximate opening size, preferred configuration and colour. We can help establish a suitable Prestige Lift & Slide specification before manufacture.
Get a patio door quoteTalk to Ali-Co
Planning an aluminium project?
Tell us what you need and we can discuss sizes, product options, supply-only or installation.
